SeleniumBasic is a Selenium based framework for the VB family that has been unmaintained since 2016.
Installation
- Excel
- SeleniumBasic
- A WebDriver
- .NET Framework 3.5
Given that the VBA interface in Excel hasn't been updated since...1832...I am going to assume Excel version will not have any major impacts, but for reference I used Version 2201.

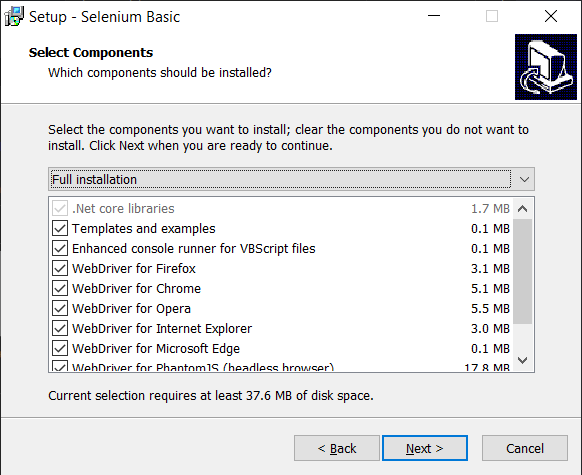

Each of the major web browsers provides a WebDriver, which is a piece of software that allows a browser to be controlled and automated by external programs. The SeleniumBasic installer includes a number of WebDrivers which you can choose to include, but these all appear to be wildly out of date and will cause Excel to crash if you have a recent browser installed.
To fix this you will need to manually replace the WebDrivers you intend to use. Each of the major browser vendors distribute up to date versions of their own WebDrivers (Edge, Chrome, Firefox). Within each of these zip archive you'll find an executable, e.g. msedgedriver.exe
for everyone's fifth favourite browser. To replace driver included with SeleniumBasic, you need to place the up to date executable in C:\Users\<username>\AppData\Local\SeleniumBasic
. The up to date WebDriver will need to have the same name as the original outdated WebDriver, so msedgedriver.exe
needs to be renamed edgedriver.exe
. Irritatingly, it's probable that eventually automatic browser updates will render even these updated WebDrivers outdated, and these executables will need to be replaced again.

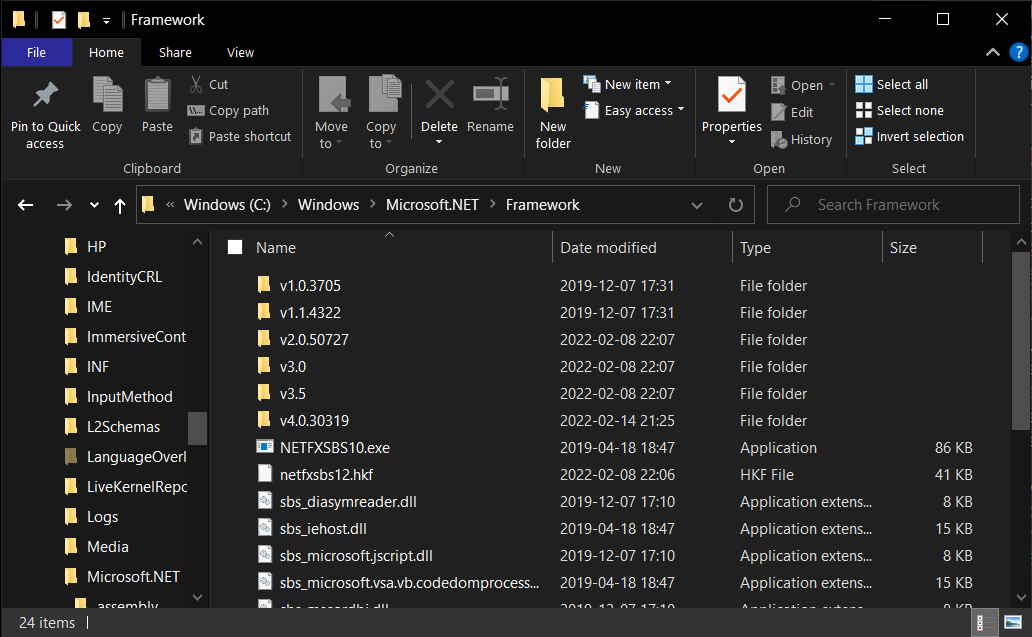

.NET Framework versions annoyingly don't show up as installed programs, so if you want to find out what versions you already have installed, you must use one of several annoying ways. The least annoying of these is to look in the C:\Windows\Microsoft.NET\Framework
directory.
Actual Use
Now you can actually use it as you'd expect. Open the VBA IDE in Excel start using some of the gorgeous syntax and best in-class tools that Microsoft so kindly allows you to purchase.

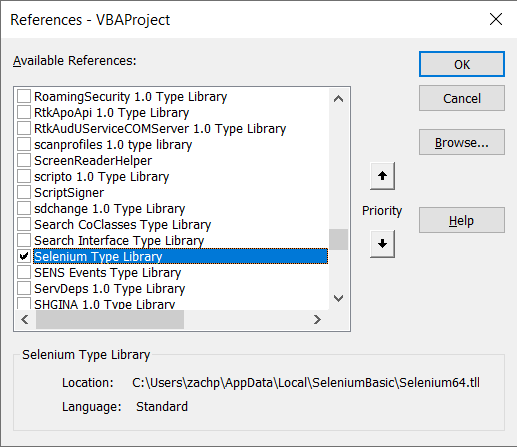

To enable SeleniumBasic in Excel you'll need to navigate to Tools > References
and check Selenium Type Library
.
)
From here you can write fairly standard Selenium code in VBA.
Sub AutoSearch()
Dim driver As Selenium.EdgeDriver
Set driver = New Selenium.EdgeDriver
driver.Start
driver.Get ("https://old.reddit.com/")
Dim searchbox As WebElement
Set searchbox = driver.FindElementByName("q", -1, True)
searchbox.SendKeys ("selenium")
Dim submit As WebElement
Set submit = driver.FindElementById("search", -1, True)
submit.submit
driver.Quit
End Sub
Software versions used: Windows 10 10.0.19043, Excel 2201, SeleniumBasic 2.0.9.0, Edge 98.0.1108.50, EdgeDriver 98.0.1108.51
Links
- Official Selenium Documentation
- A fantastic resource for VBA+Selenium is WiseOwlTutorials' series on this exact thing.
